CLASSIC ADVANCED GT 500
Three finishes. One distinctive angular roadster.
Classic open-cockpit proportions meet hand-fabricated aluminum bodywork: a long hood, low windshield, sharp fender lines and a compact rear deck. Each concept carries Advanced GT Motors branding and the GT Motors 427 fender badge. Choose your finish and develop the engine, chassis and interior package with us.
The engine pairings below are proposed build directions. Colors and engine choices can be combined to suit your commission. Air conditioning is standard on every complete vehicle.

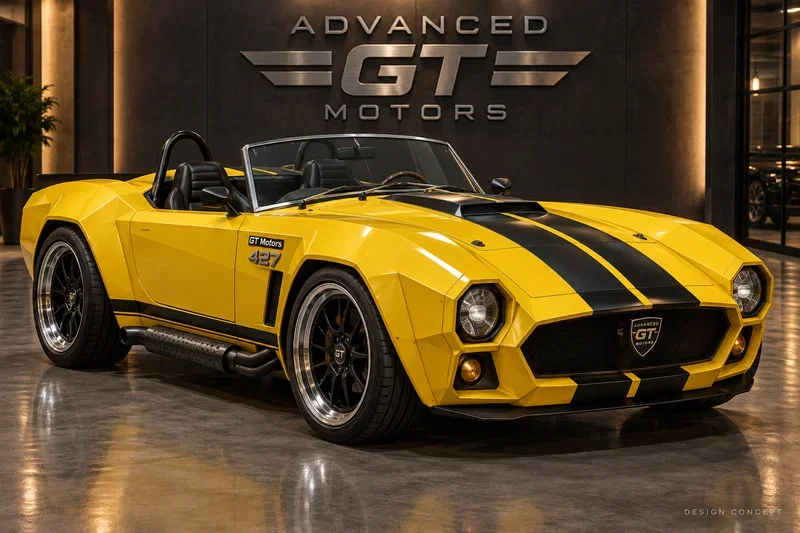

YELLOW & BLACK — MODERN V8 PERFORMANCE
Brilliant yellow panels, broad black racing stripes and black mag wheels give this roadster an assertive appearance. Faceted wheel arches and a low open cockpit keep the design compact and purposeful.
- Proposed engine: Ford 7.3L Godzilla V8, with electronic fuel injection.
- Published engine reference: Ford M-6007-73B is rated at 430 hp at 5,500 rpm and 485 lb-ft at 4,000 rpm.
- 500-hp direction: A proposed tuned engine target, subject to the engine builder’s specification and dyno validation. It is not the standard Ford rating or a measured output for this car.
- Performance focus: A torque-oriented modern V8 package, with cooling, fuel delivery, controls and gearing developed together.
Ford engine reference. This specific crate engine is listed for competition/off-highway use; a road-use powertrain must be specified accordingly.

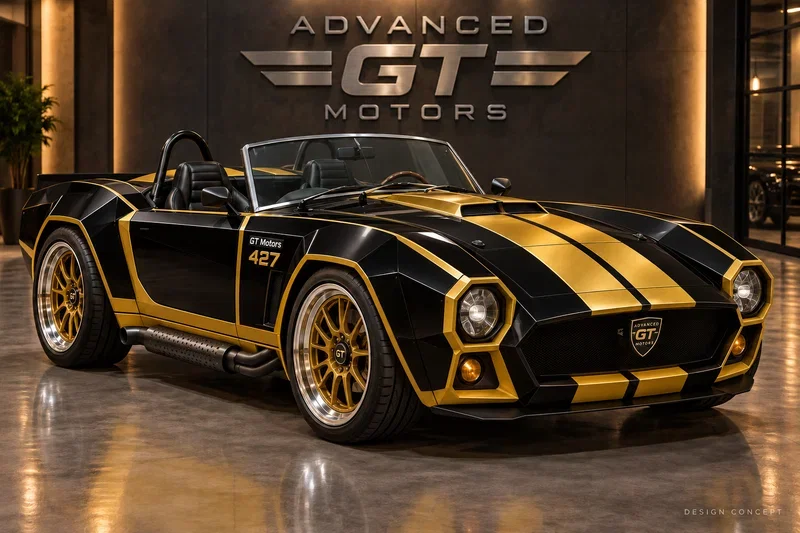

BLACK & GOLD — 427 BIG-BLOCK CHARACTER
Gloss black aluminum panels, broad gold stripes and gold mag wheels give this version a formal, muscular presence. The gold fender badge and substantial edge accents highlight the body’s straight lines and folded surfaces.
- Proposed engine: 427-cubic-inch, approximately 7.0L, big-block V8. Confirm the engine family, supplier and build specification in the quotation.
- Published example: Chevrolet Performance’s ZZ427/480 is rated at 480 hp and 490 lb-ft. These figures apply only if that specific engine is selected; other 427 big-block builds have different outputs.
- Performance focus: Large-displacement V8 torque, a traditional exhaust character and a driveline selected for the final engine output.
- Build priorities: Engine-bay clearance, exhaust routing, heat management, clutch or converter choice and rear-axle capacity.
Chevrolet engine reference. Final engine availability and permitted application are confirmed before ordering.

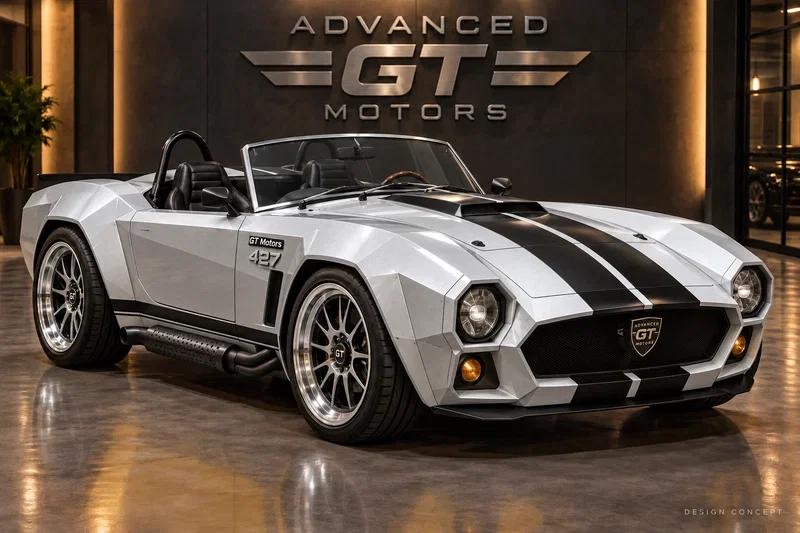

SILVER & BLACK — 351 CLEVELAND CLASSIC
Metallic silver emphasizes the precision of the flat body panels. Black racing stripes, polished mag wheels and a dark cockpit give the car a clean, understated competition-inspired appearance.
- Proposed engine: Ford 351 Cleveland V8, 351 cubic inches / approximately 5.8L.
- Engine character: A classic canted-valve V8 platform, configured around the chosen cylinder heads, camshaft, compression ratio, induction and intended use.
- Power and torque: Quoted for the selected engine build and supported by its dyno specification. There is no single horsepower rating that applies to every 351 Cleveland.
- Performance focus: A coordinated engine and gearing package developed for the owner’s preferred driving character.
Ford engine-family reference. The 427 lettering shown in the concept artwork is a styling badge; final displacement badging will match the selected engine.
CHASSIS & COMPLETE BUILD DIRECTION
| Wheelbase | 90 inches / 2,286 mm proposed reference. Final dimensions follow the selected chassis and measured body package. |
| Chassis | Selected steel roadster chassis with a powder-coated finish. Body mounts, footboxes, steering and engine position are developed for the individual build. |
| Body | Custom angular aluminum panels and separate aluminum body-support framing. Flat surfaces, sharp creases and faceted fenders define the design. |
| Suspension & steering | Coilover suspension and rack-and-pinion steering proposed; rear suspension, geometry and alignment are matched to the chosen chassis. |
| Brakes & driveline | Four-wheel disc brakes proposed, with transmission, differential, axles and tires selected for engine torque, vehicle weight and intended use. |
| Transmission | Compatible five- or six-speed manual, or automatic package by quotation. Bellhousing, clutch, controls and driveshaft are specified together. |
| Interior & comfort | Two-seat cockpit, custom upholstery, instrumentation and standard air conditioning on every complete vehicle. |
90-inch roadster chassis reference. The illustration does not establish direct fitment to any particular kit.
PERFORMANCE, BUILT TO YOUR SPECIFICATION
Engine-maker ratings are engine figures, not measured wheel horsepower or finished-car test results. Acceleration, top speed, braking and handling depend on completed weight, gearing, tires, setup and testing. Those results are established after the individual vehicle is completed and validated. GT 500 is the concept model designation, not a guaranteed horsepower figure.
COMMISSION YOUR ROADSTER
Discuss a complete vehicle, aluminum bodywork or chassis project with Advanced GT Motors. Final dimensions, components, pricing, delivery timing and road-use requirements are established for your build.
2657 W 76 St., Hialeah, FL 33016 · Visit by appointment · 954-615-7382 · Request a build consultation
